Many people around the world call these boilers by different names. Hot oil heater, hot oil system, hot oil boiler, hot fluid heater, thermal fluid system, thermal oil boiler, thermal fluid heater, hot oil heater and hot oil boiler. All of them are a type of liquid phase heat transfer system. Closed loop is implied, and many people use the term thermal oil boiler or thermal liquid boiler, even though no evaporation takes place. A hot oil boiler is the beating heart of a heat transfer system with hot oil fluid and plays the main role of heat production in this circulating circuit, so its design and construction is of particular importance.
The hot oil boiler or hot oil boiler is a device that creates the necessary temperature level for the circulating oil to come into contact with the hot gases resulting from the combustion of the burner fuel, causing heat to be transferred to the circulating fluid.
Boiler or boiler Industrial, in general, refers to any device or heat exchange device that causes temperature transfer from a very hot fluid to a colder fluid. A hot oil boiler or heater is generally defined as the same, but more specifically, it can be said that a hot oil boiler is a heat transfer exchanger between the very hot plasma of the burner and the hot oil fluid.
Hot oil boiler which causes the direct heating of special thermal oil in the designed coils inside the oil boiler and this heated oil is constantly circulating in a closed cycle.
In the heating system using hot oil It is possible to reach a temperature of 300 degrees and above (up to 400 degrees) and according to the progress made regarding the production of this product, the possibility of designing, producing and implementing the system with the highest thermal efficiency has been provided.
انواع دیگ روغن داغ (بویلر روغن داغ) :
Vertical design hot oil boiler
- Boiler heat capacity from 150 thousand to 2 million kilocalories per hour
- Reducing the length limitation of engine room space in this oil boiler design< br>- Improving the draining time and the oil circulation process in the boiler coils
- Reducing the vertical heat loss at the outlet of the hot oil boiler

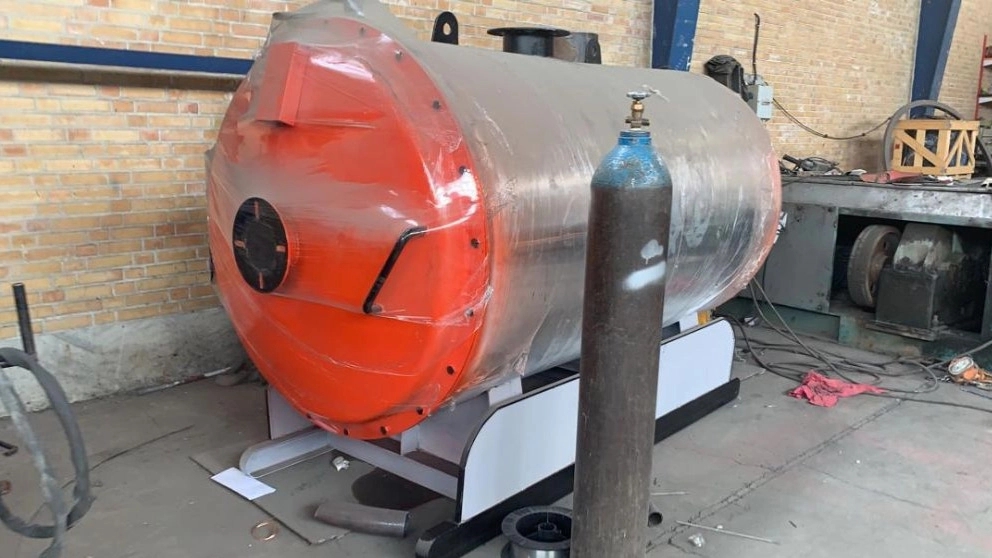

Horizontal design hot oil boiler
< br>*- Boiler thermal capacity from 150 thousand to 4 million kilocalories per hour
*- Easier access to coils for boiler inspection and repair
*- Ease of operation and service of all types of burners In this hot oil boiler design
*- reduction of thermal damage on the inner wall of the burner
دیگ و هیتر روغن داغ چگونه کار می کند؟
Hot oil boiler or heater is one of the most important heat exchangers of the type of boilers and one of the most widely used devices in various industries, which is used to create heat exchange between the oil fluid on the one hand and the very hot gases inside the furnace on the other hand. It is no longer used.
The hot oil boiler is a device that heats special thermal oil that is located in the coils designed inside the boiler, and this oil is heated in a closed environment permanently. It is circulating.
Using a hot oil boiler, it is possible to reach a temperature higher than 300 degrees and sometimes even up to 400 degrees. For this reason, it is used in various industries. A hot oil boiler produces energy by the oil inside the spiral (coil) and the heat from combustion. This heat comes from heating the coil (coil) by radiation or convection.
The coil heats the thermal oil or fluid (liquid) that is pumped through the hot oil boiler. Thermal oil heats coils in a variety of applications. This heating process does not put a lot of pressure on the device unlike a hot water or steam boiler.
